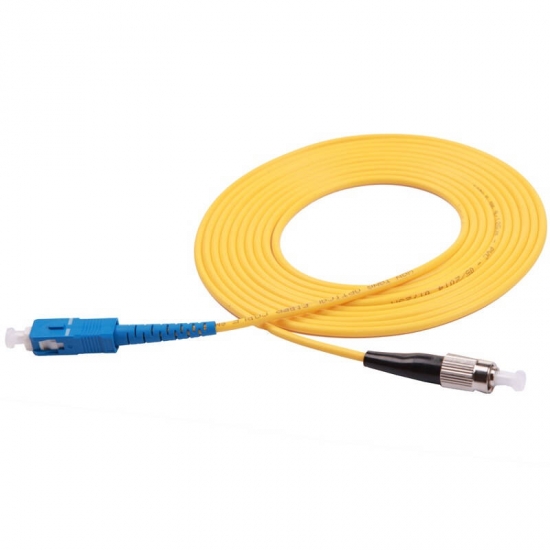

FC/UPC-SC/UPC SM SX 光纤跳线

型号:
1M/3M/5M......
接口:
FC/UPC-SC/UPC
产品产地:
Made in China
发货港口:
ShenZhen
品牌:
ETU-LINK

产品详情

Features:
Low insertion loss and back reflection loss
Good Durability
Good exchangeability
High temperature stability
Standard: Telcordia GR-326-CORE

Applications:
CATV / Metro
Active device termination
Telecommunication networks
Local Area Networks (LANs)
Data processing networks
Test equipment
Premise installations
Wide Area Networks (WANs)

Specifications:
Insertion Loss: Typical≦ 0.2dB, Maximum≦0.3dB
Return Loss :≧50dB (PC/UPC); ≧65dB (APC)
Repeatability: ≦0.1
Durability ≦0.2dB typical change, 1000 matings
Interchangeability: ≦0.2dB
Tensile Strength : >10kg
Operating Temperature: -40 ~ 85℃

Patch cord Order Information

Patch cord Order Information
Connector-1	Polishing	Connector-2	Polishing	Cable Type	Length	Cable Diameter	Fiber Count	Remark
SC	APC	LC	PC	OS2	5M	2.0MM	Duplex	LSZH
FC,SC	PC,UPC	FC,SC	PC,UPC	OM1 62.5/125	0.5M	0.9MM	Simplex	Colors
LC,ST	APC	LC,ST	APC	OM2 50/125	1M,2M	1.8MM	Duplex	Armored
MU,MTRJ		MU,MTRJ		OM3 10G	3M,4M	2.0MM	4,6,8 counts	Waterproof
E2000,MPO		E2000,MPO		OS1	5M,10M	3.0MM	12counts...	LSZH
SMA,DIN		SMA,DIN		OS2 9/125	100M...	Others	48Counts...	PVC
				G657A/B/D	500M...			OFNR
				G655	1000M...			OFNP
